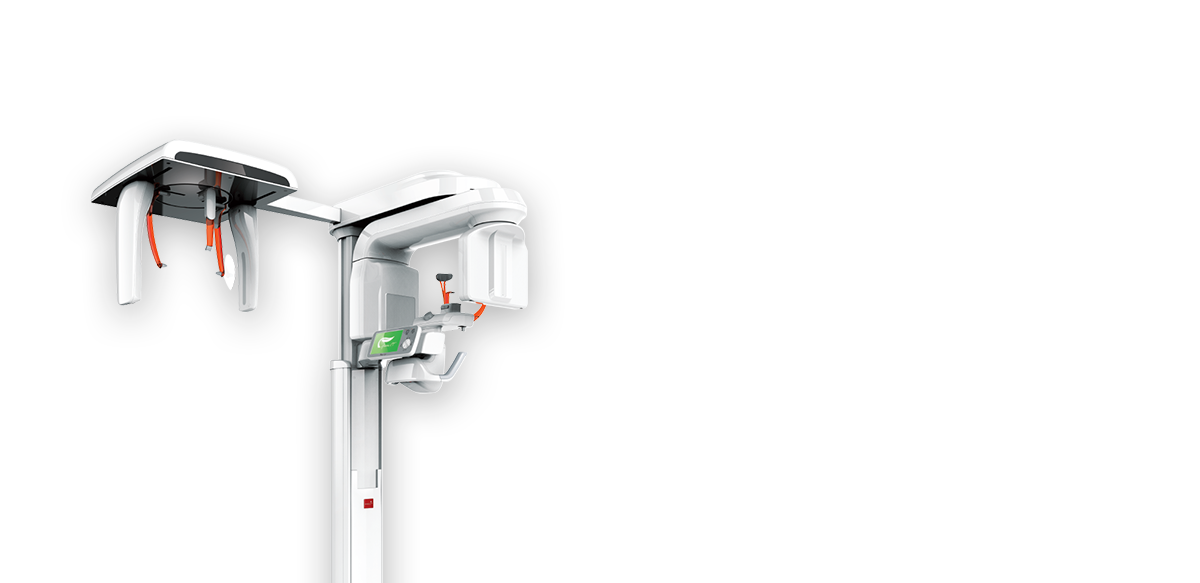

Pax-i

FEATURES

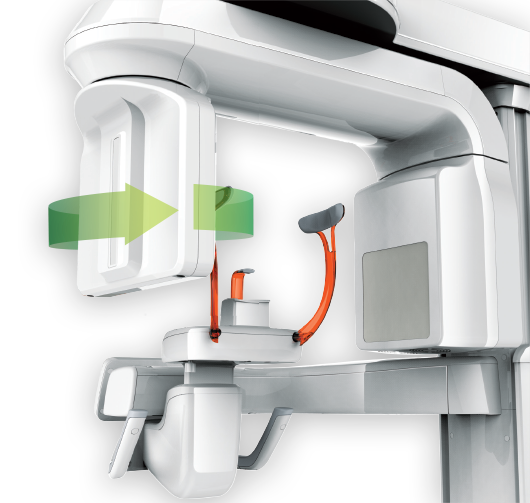

PATENTED AUTO-SWITCHING TECHNOLOGY

The Green CT offers convenient and safe
'Patented Auto-Switching Technology' system between CBCT
and Panoramic sensors. This smart system conveniently
prevents sensor damage from accidental dropping.

one shot ceph
one shot ceph

ONE SHOT CEPH

With One Shot Ceph, you can acquire
hight quality images with low x-ray dosage.
Plus, short scan time markedly reduces
motion artifacts.

DESCRIPTION

PROFESSIONAL DIAGNOSTIC VALUE WITH 3D IMAGES

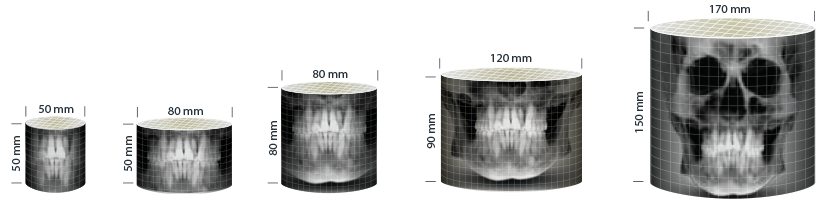

WIDE RANGE OF DIAGNOSIS WITH MULTI FOV SELECTION
With expanded FOV sizes, the Green CT offers valuable diagnoses for professionals.

Highest Quality of Patient Care | Superior Image Quality | Increase Workflow Efficiency

The Green CT produces superb diagnostic images, which will be a source of pride for any dental practice, and improves the health and safety of your patients.

Experience excellent image quality with VATECH'S advanced technology.

POWERFUL DIAGNOSTIC VALUE WITH 3D IMAGES
WITH EXPANDED FOV SIZES, THE GREEN CT OFFERS VALUABLE DIAGNOSES FOR PROFESSIONALS
FOV 8X8

8x8 images enable comprehensive diagnosis and treatment planning
including both maxillary and mandibular areas in a single scan.
It is useful for complex implant surgery as well as left or right
TMJ diagnosis.

FOV 12X9

12X9 images can provide the most optimal information for oral
diagnosis fully covering both maxillary and mandibular structures
including the 3rd molar region in a single scan. It is suitable
for most oral surgery cases as well as multiple implant surgery.

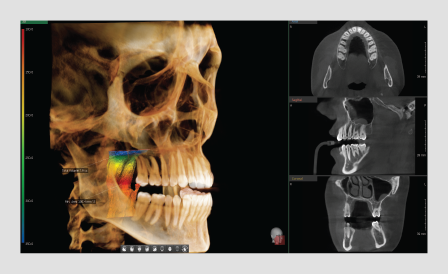

FOV 17X15

17X15 images from Green CT enable you to do a comprehensive
diagnosis including oral and maxillofacial surgery. This prefect
FOV size will be helpful for complex orthognathic, implant, and
orthodontic surgery.

PROFESSIONAL DIAGNOSTIC VALUE WITH CEPHALOMETRIC IMAGES

EXTENDED DIAGNOSTIC VALUE FOR WIDE INSIGHT

CEPHALOMETRIC - SCAN TYPE

The Green CT< provides optimal images with an exclusively designed sensor for cephalometric diagnosis.
As it offers two image sizes, LAT and Full LAT, you can choose one of them based on the purposes of your diagnostic needs.

BUILT-IN SENSOR SYSTEM

The Green CT enables you to acquire high quality images in a safe and comfortable environment.
Best of all, you don’t need to waste time or risk damage by changing sensors.

LATERAL

Provide specialized high quality images to suit
orthodontics and maxillofacial surgeries.

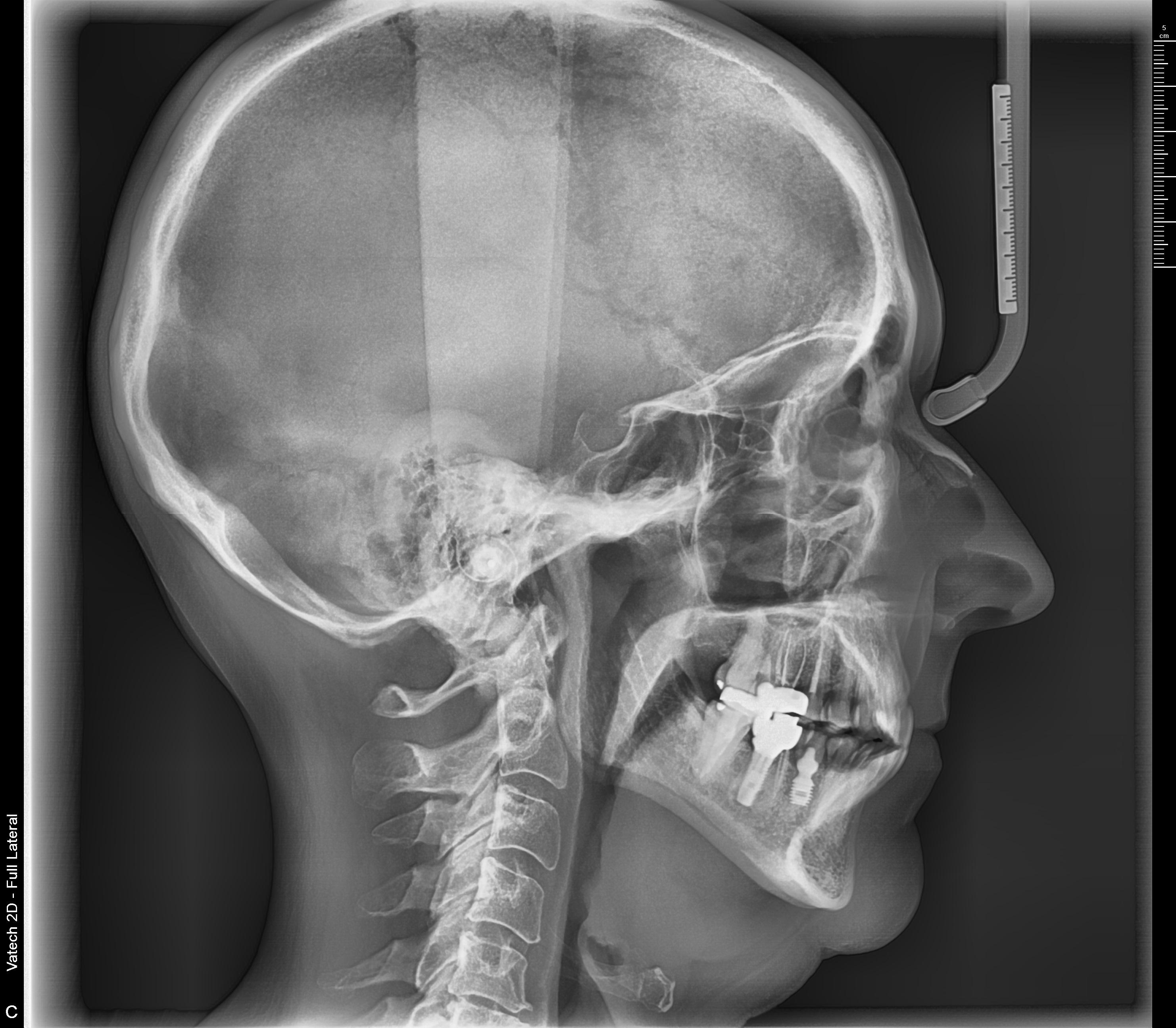

FULL LATERAL

A full lateral image size is 30% wider and shows the occipital
area of the patient, which enables comprehensive diagnosis.

EXAMINATION PROGRAM SCAN TIME IMAGE SIZE
LATERAL 3.9 sec 21x23cm (8.3"x9.1")
FULL LATERAL 16.9 sec 27x23cm (10.6"x9.1")
CEPHALOMETRIC – ONE SHOT TYPE

Superior image quality is delivered using highly advanced a-Si TFT Sensors.
Three different ceph image sizes reduce unnecessary x-ray dosage and scans the ideal area of
cranial anatomy for your diagnosis and treatment planning.

SMALL

20x20cm (8"x8")

MEDIUM

23x25cm (9”x10”)

LARGE

30x25cm (12”x10”)

PA
CARPUS
SMV (Submentovertex)

CONFIGURATION

CBCT PANO CEPH (SCAN) CEPH (ONE SHOT)
Green CT
Green CT SC
Green CT OP

SPECIFICATIONS

Green CT : PHT - 60CFO
FUNCTION CT-FOV SIZE VOXEL SIZE SCAN TIME
Pano + CBCT + Ceph 17x15 cm : Multi [5x5 / 8x5 / 8x8 / 12x9 / 17x15 cm] 5x5 cm : 0.08mm/ 0.2mm
8x8, 12x9 cm : 0.2 mm / 0.3 mm
17x15 cm : 0.2mm / 0.3mm
Pano : 10.1sec
Scan Ceph : 3.9sec
One Shot Ceph : 0.9 - 1.2sec
CBCT : 5.9 sec, 9 sec
CEPH FOV SIZE GRAY SCALE PATIENT POSITIONING TUBE VOLTAGE/ CURRENT
SC 8.3” x 9.1” [LAT, PA, SMV, Waters View, Carpus] | 10.6” x 9.1” [Full LAT]
OP 8"x8” [LAT, PA] | 9"x10“ [LAT, PA] | 12” x 10” [LAT, PA, SMV, Waters View, Carpus]
14 bit Standing/ Wheel-Chair Accessible 50-100 kVp(1 kV step) / 4-16 mA(0.1 mA step)

DIMENSION

TYPE TOP VIEW FRONT VIEW
Green CT
(Pano/CBCT)
Green CT SC
(Pano/CBCT/Scan Ceph)
Green CT OP
(Pano/CBCT/One Shot Ceph)

* An additional 7.5 inches(191 mm) of space is required behind the unit for wall mount bracket installation
(mandatory unless there is a base mount installation).

IMAGES

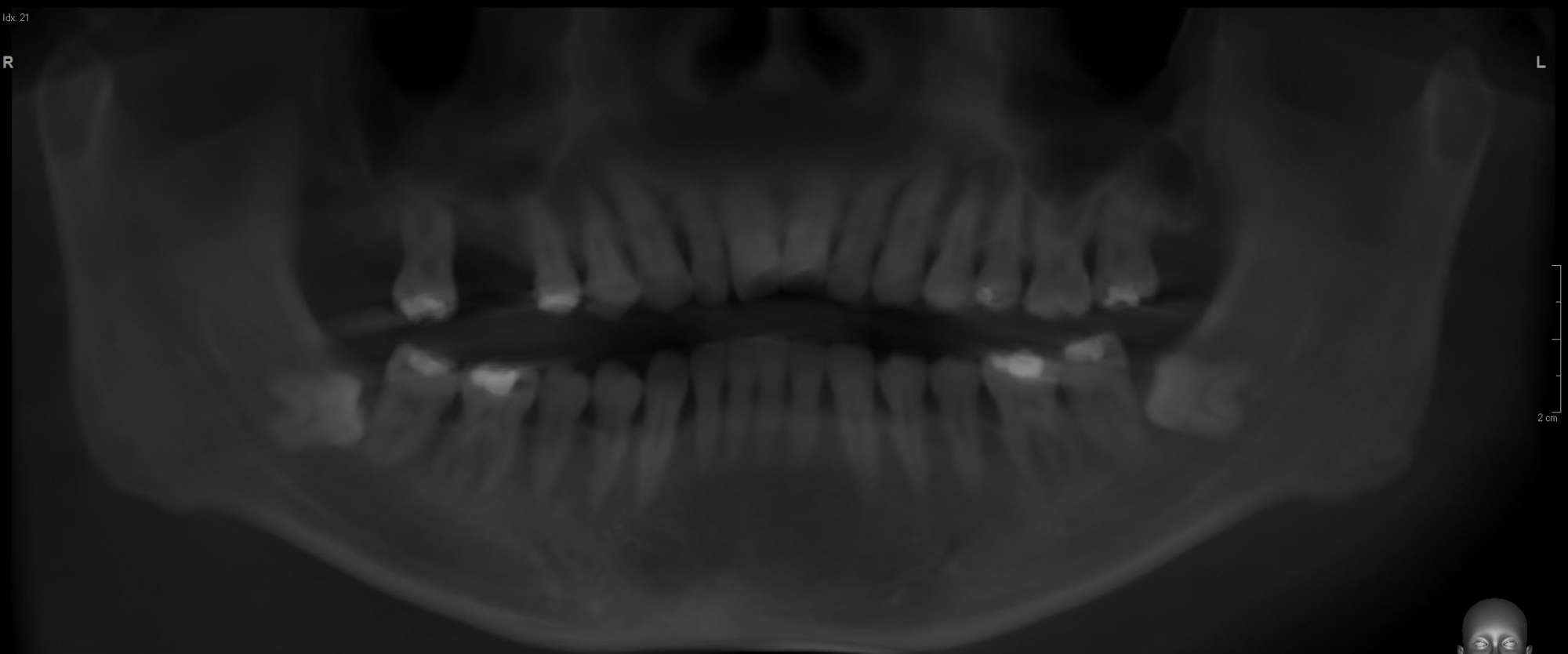

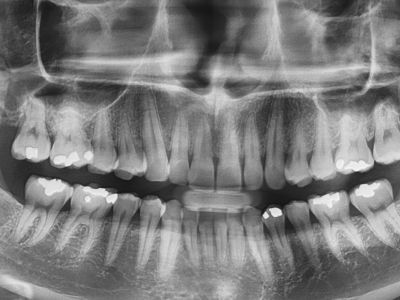

PANO

Click images to enlarge

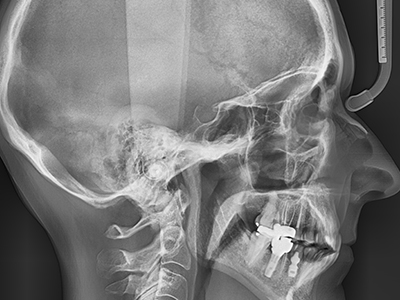

CEPH

Click images to enlarge

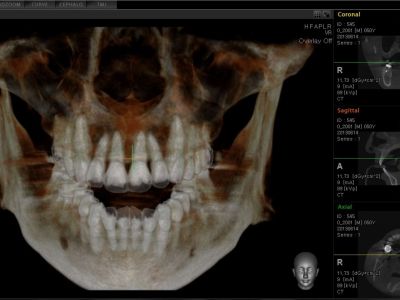

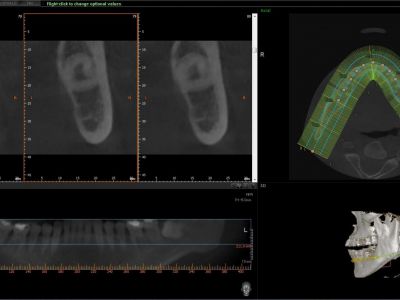

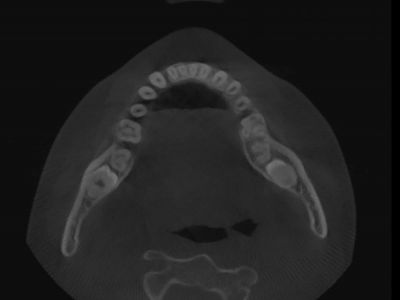

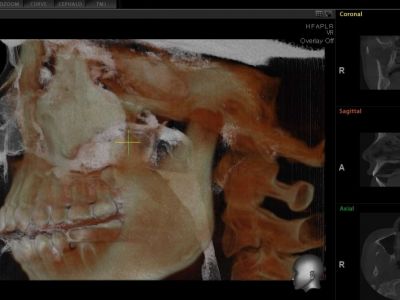

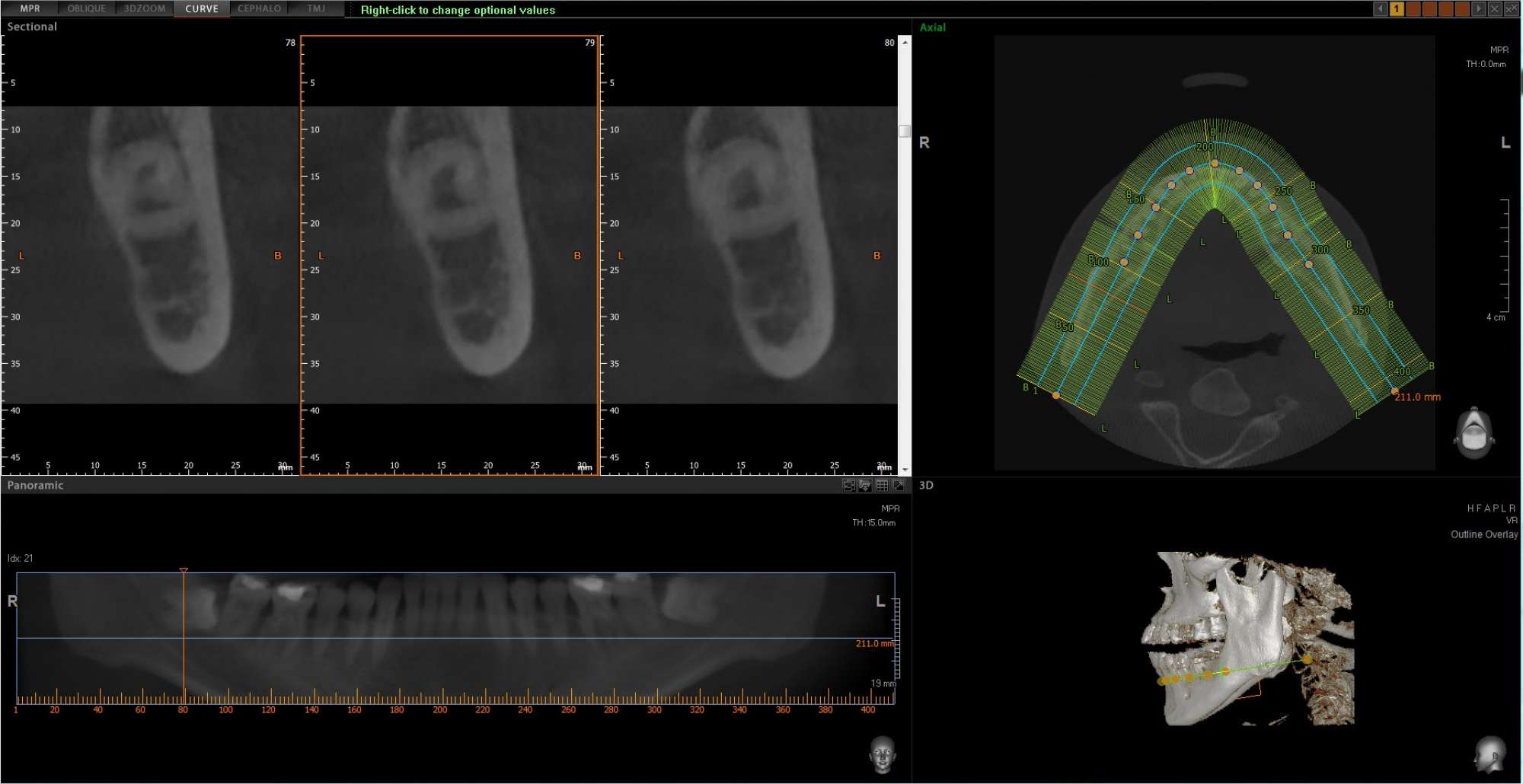

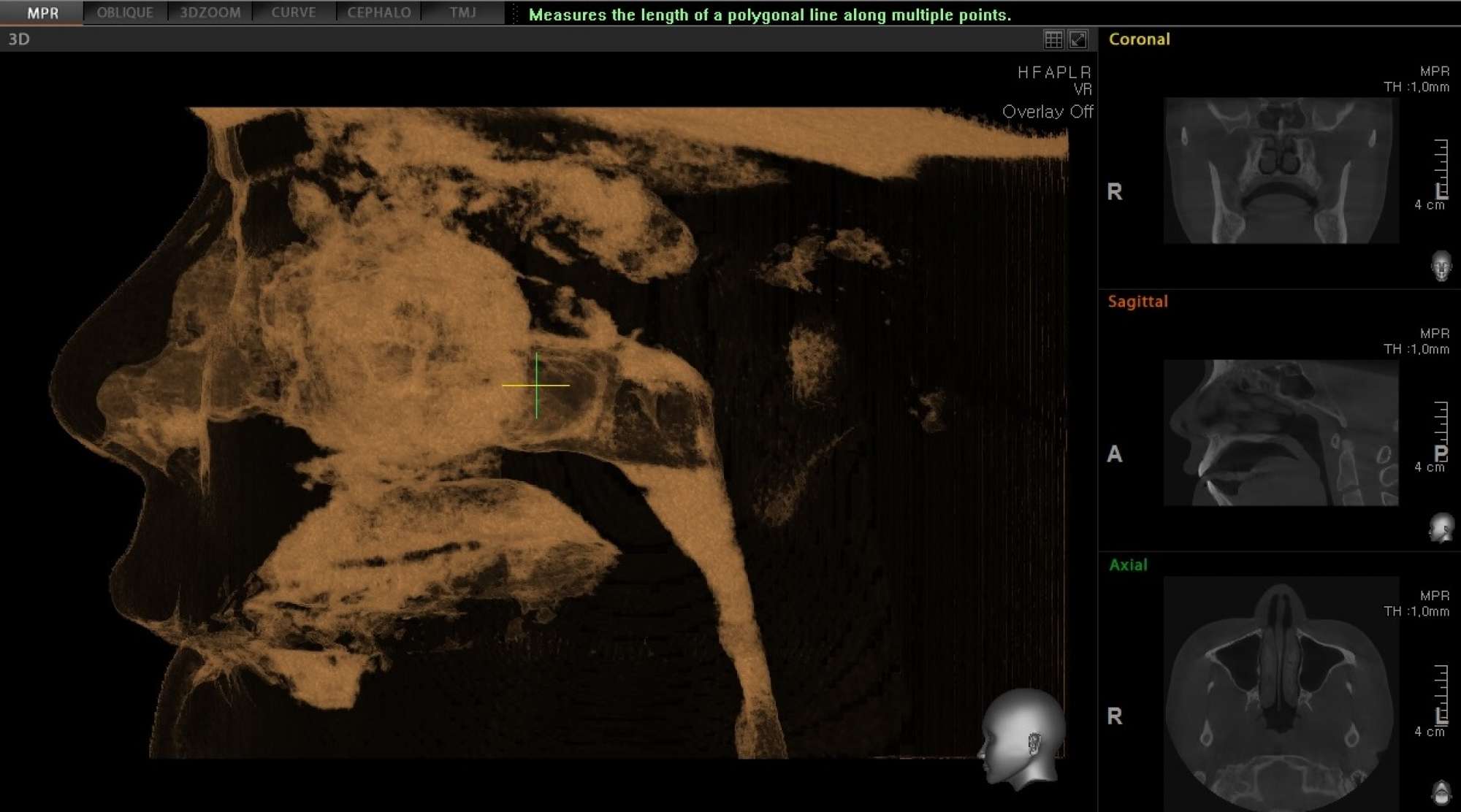

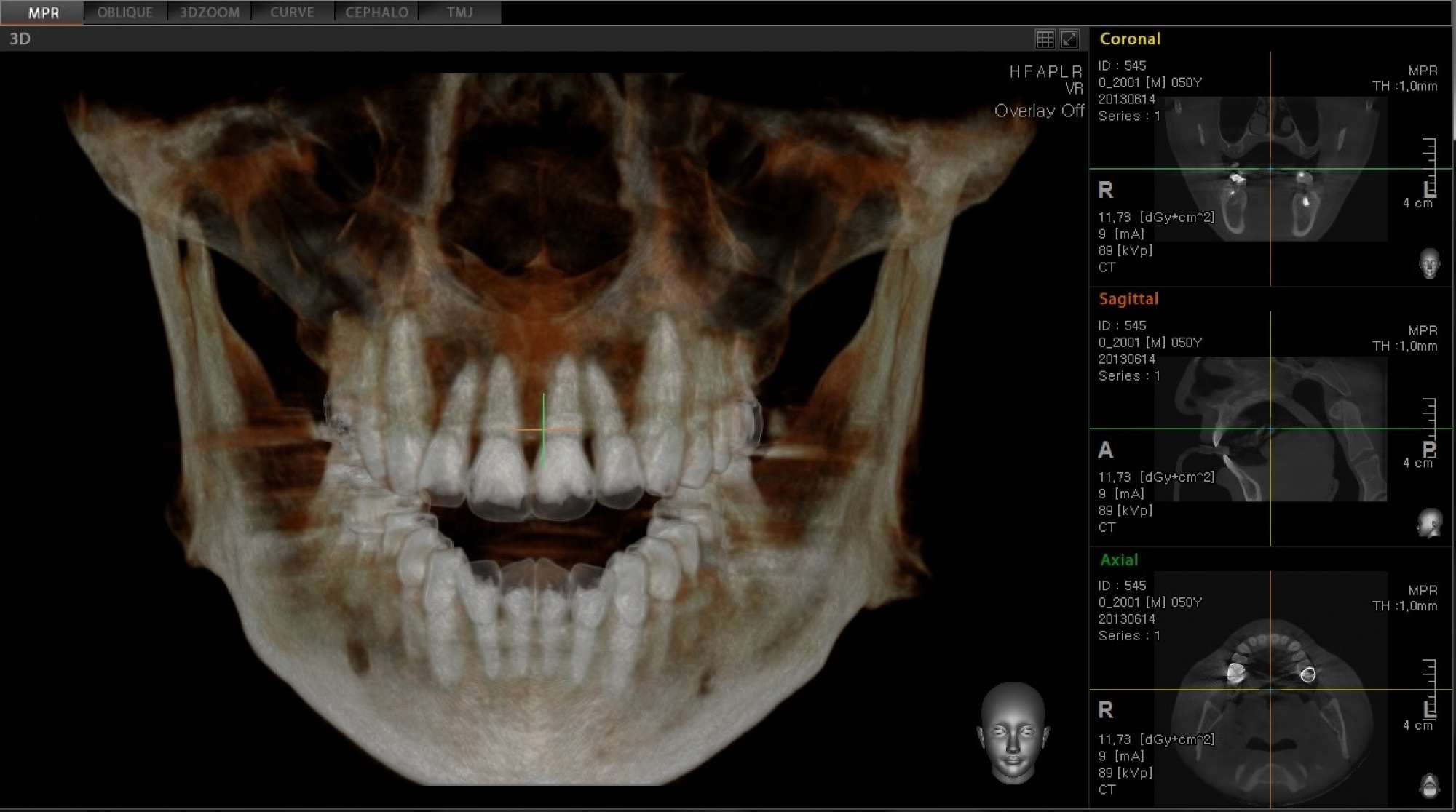

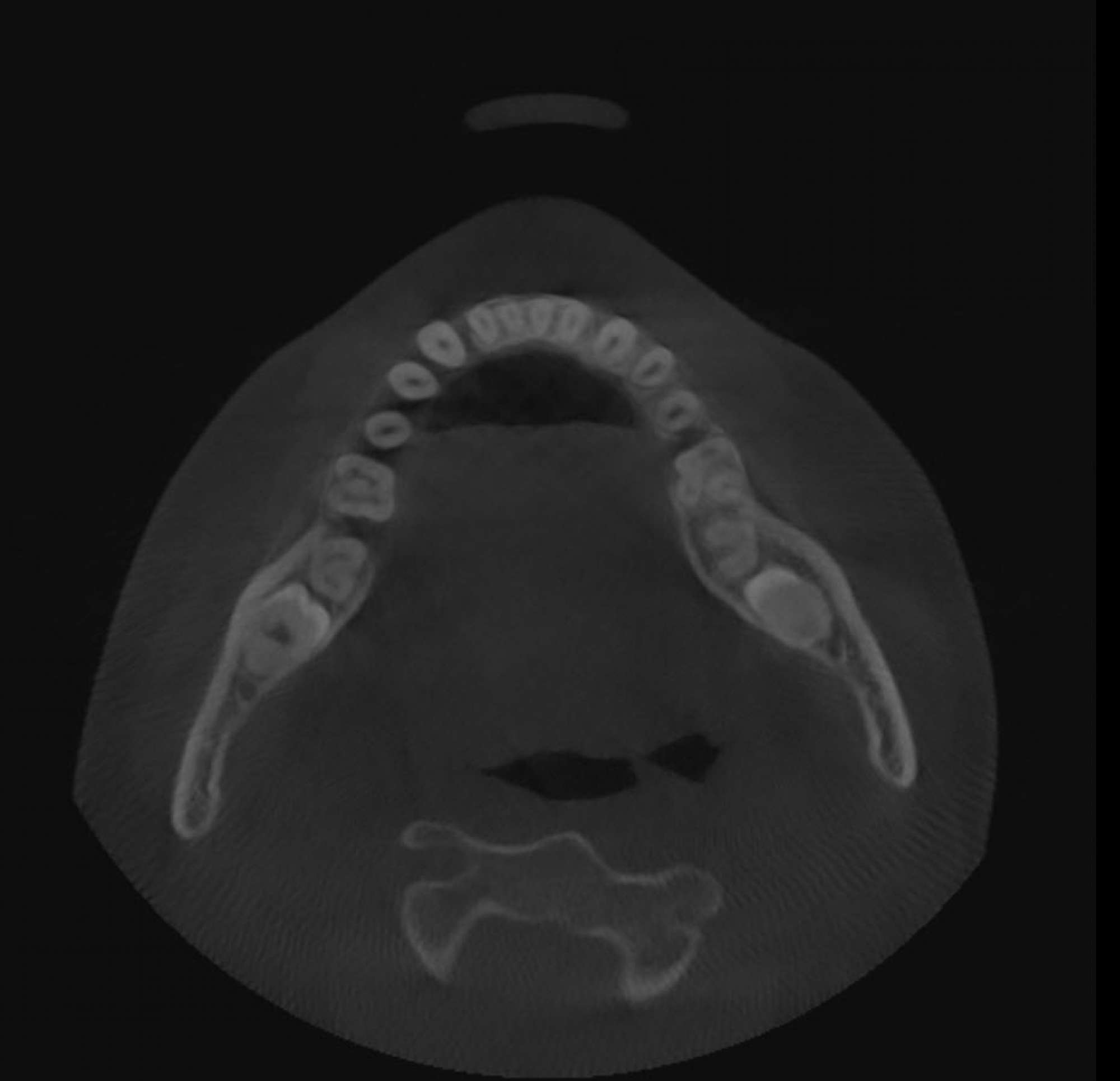

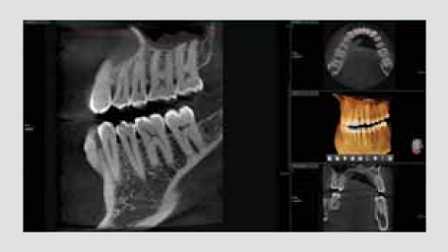

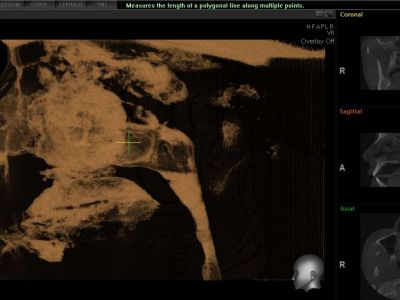

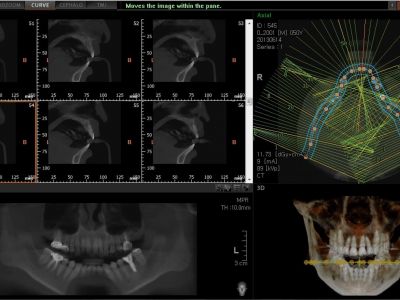

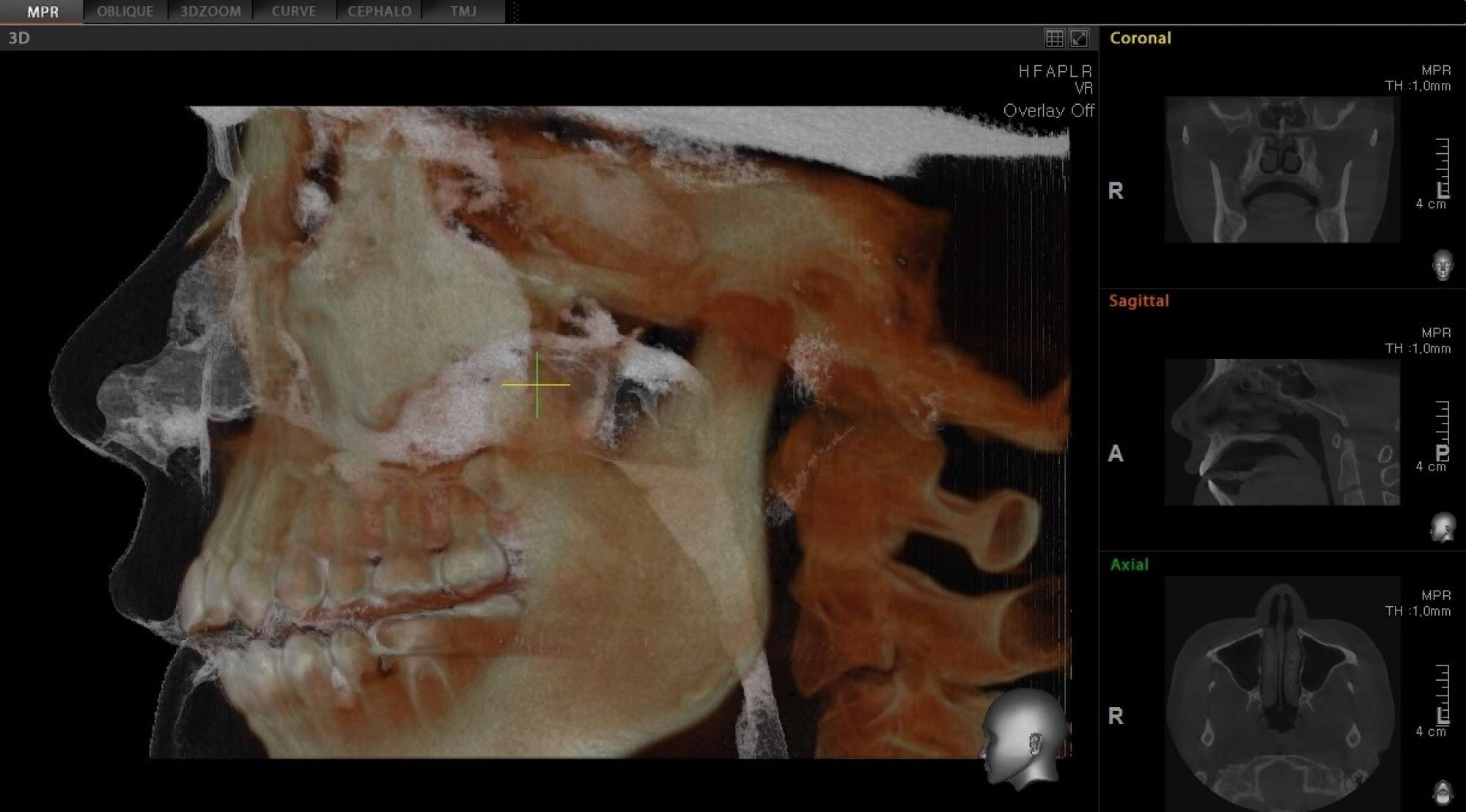

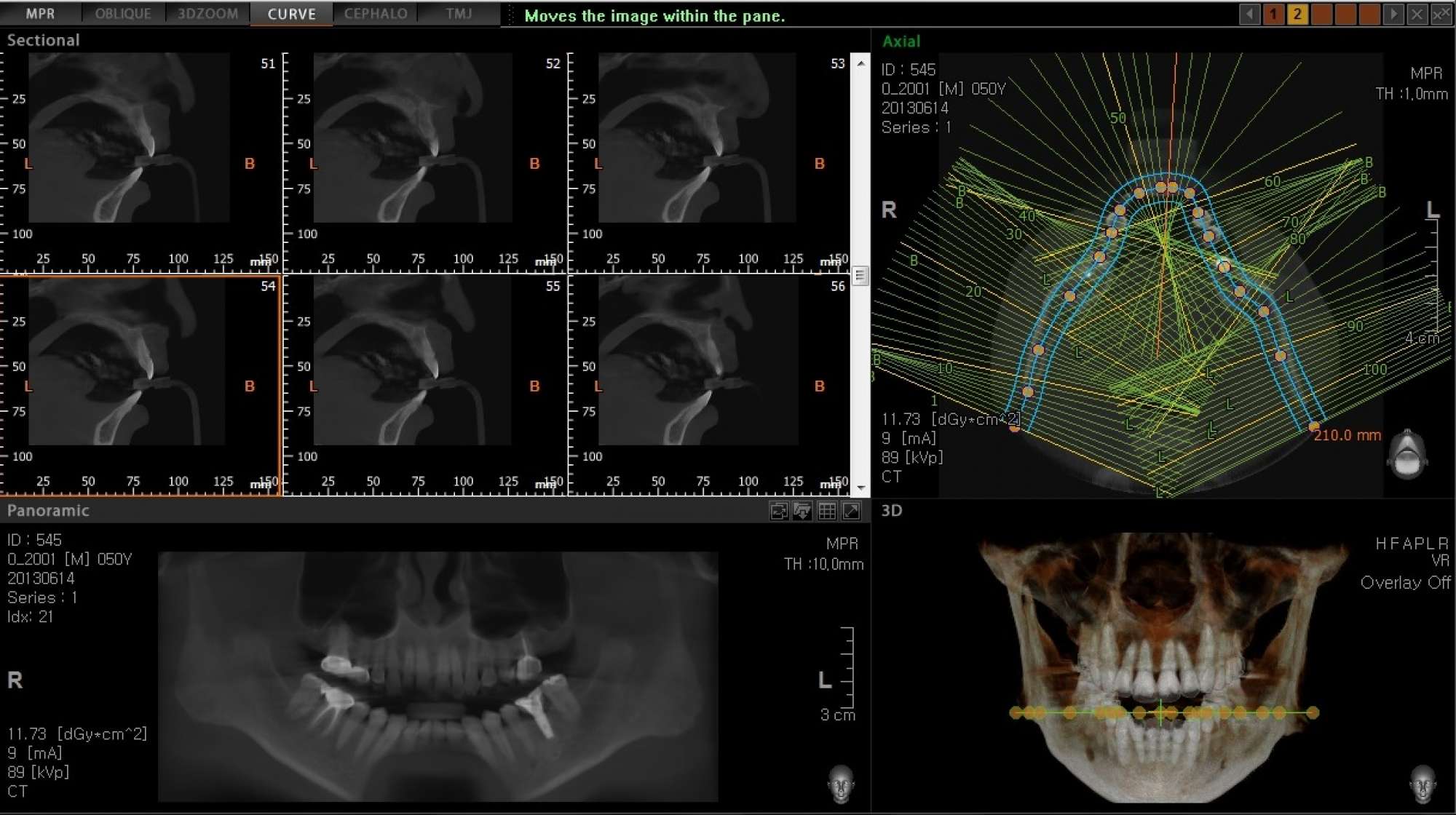

CT

Click images to enlarge

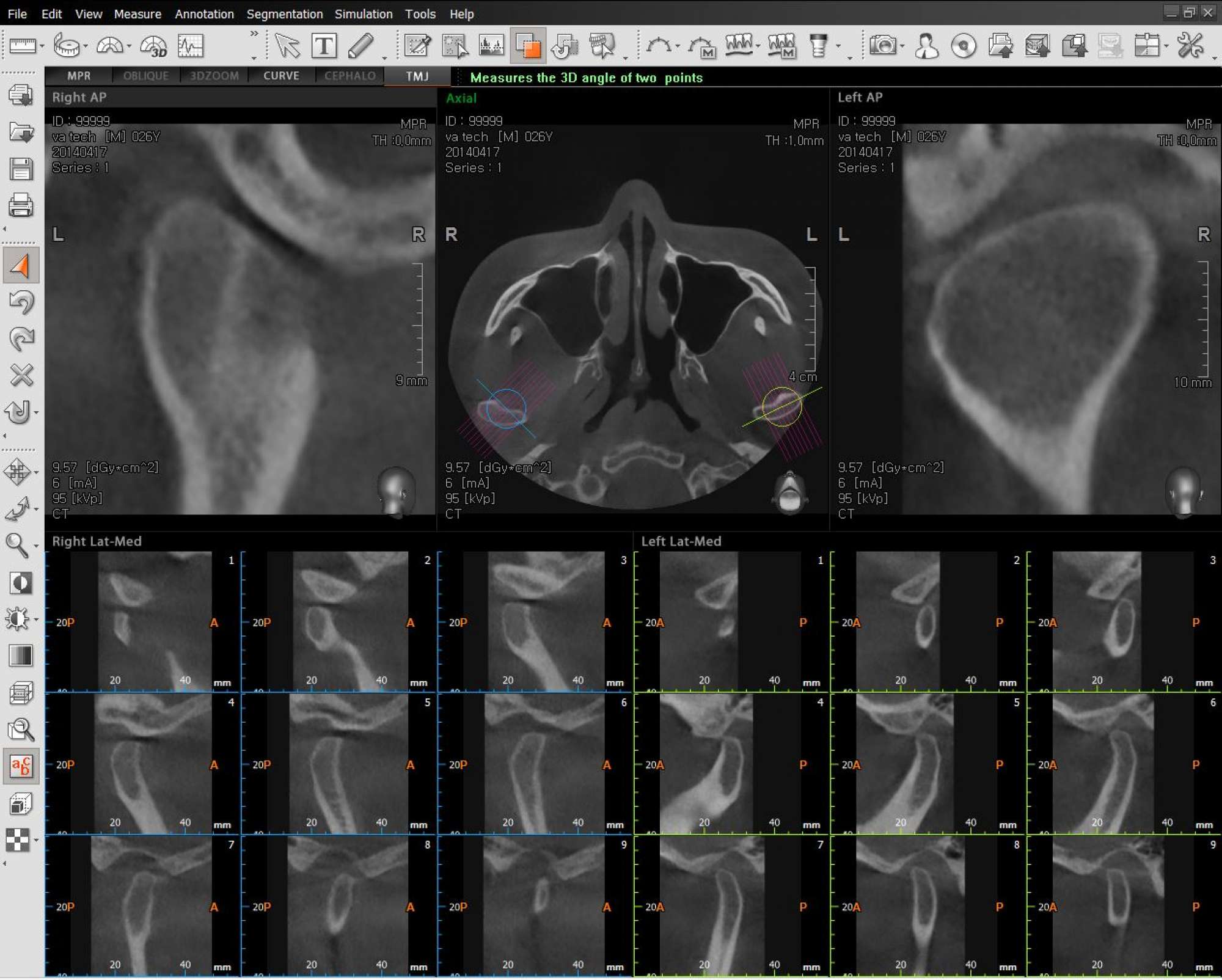

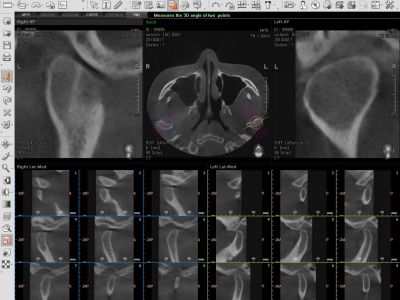

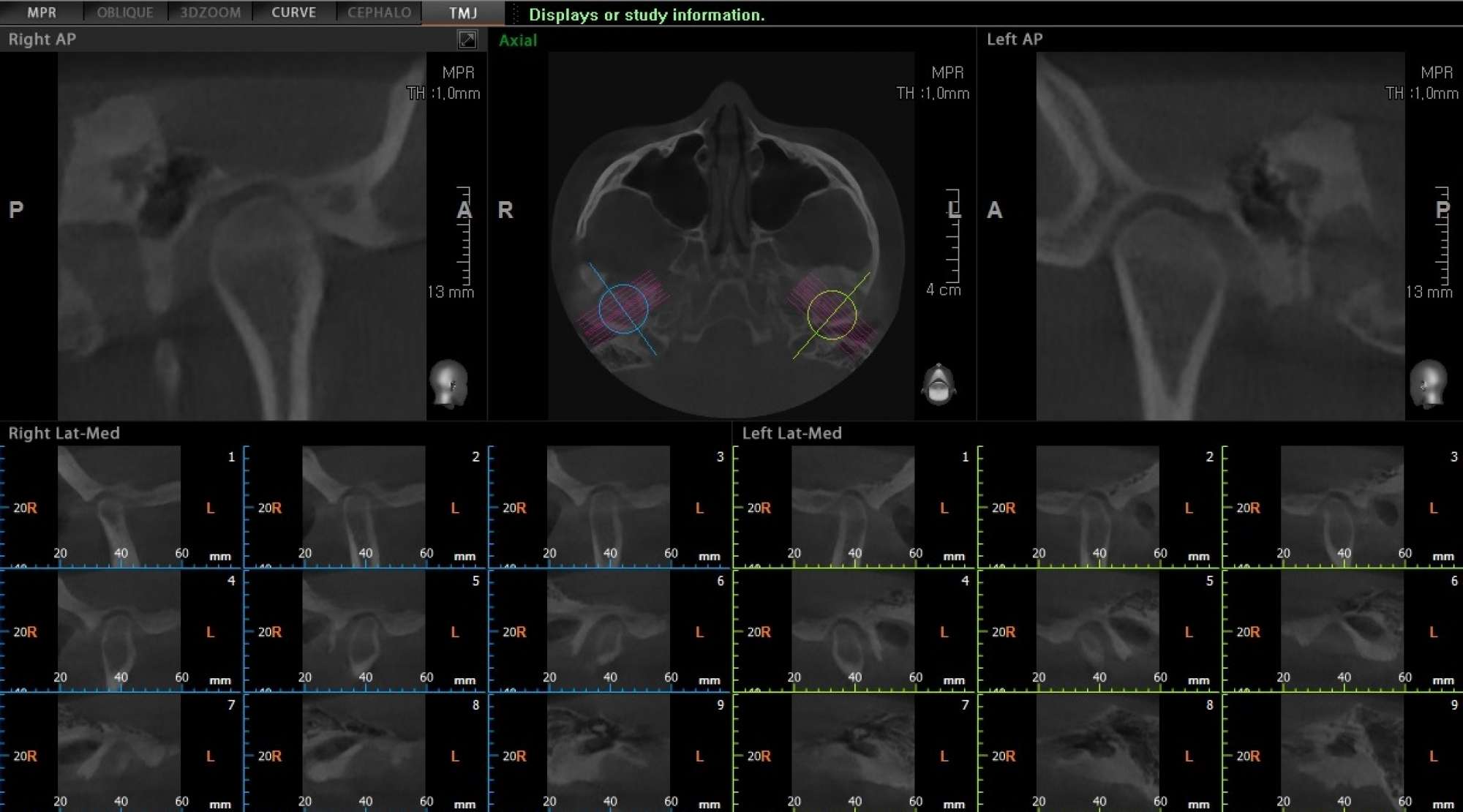

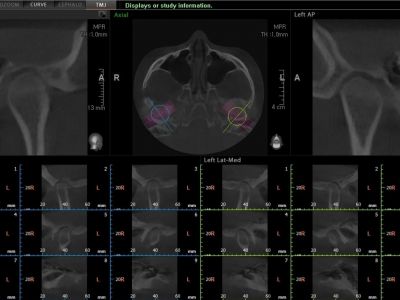

TMJ

Click images to enlarge
