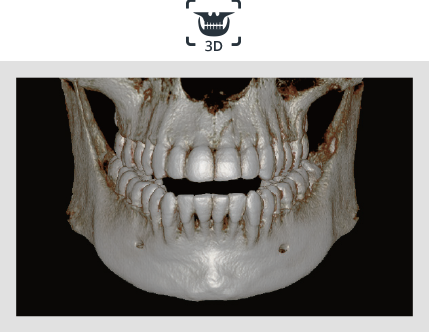

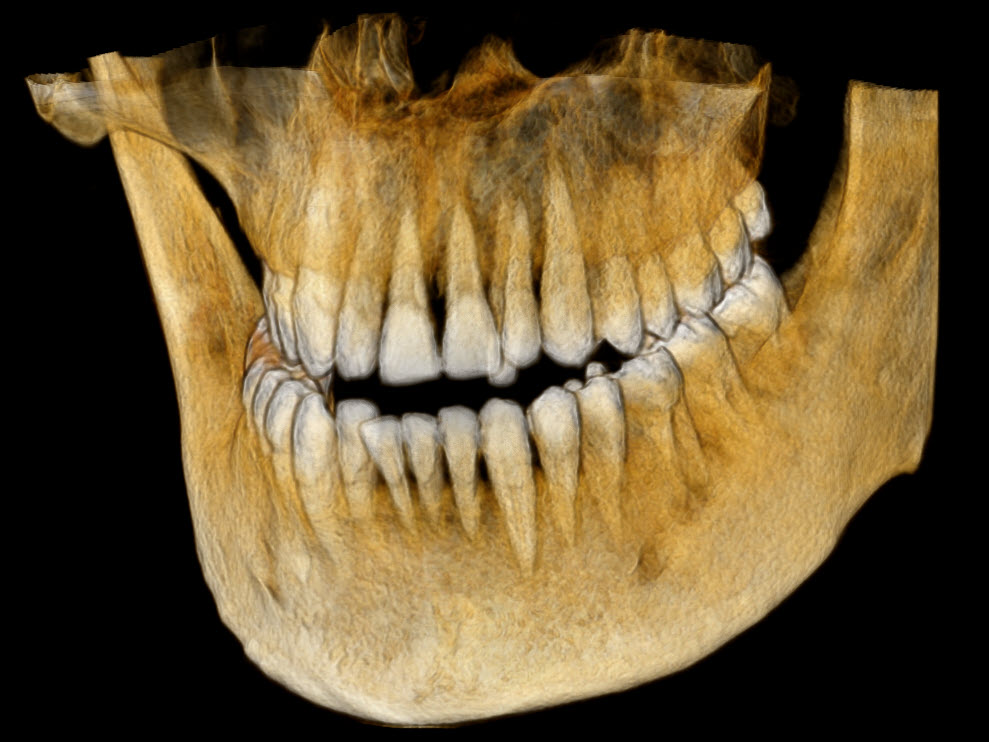

Vatech dramatically improves its image quality with much less artifact and noise via its Compressed Sensing Technology (CST), iterating its reconstruction process 10 times more than the normal amount to depict the object’s true representation.

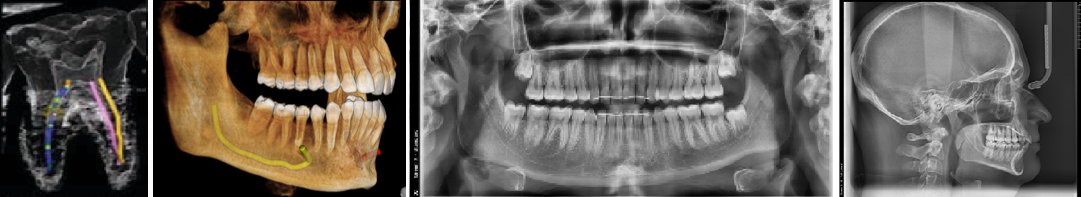

The Green X 12 is an advanced digital X-ray imaging system that incorporates
pano, ceph (Optional), CBCT and model scan.
It provides high-quality images with lower radiation by combining image
processing with Vatech's extensive experience in the dental imaging field.
This will improve your diagnostic accuracy, which will lead to increased
treatment planning and patient satisfaction.

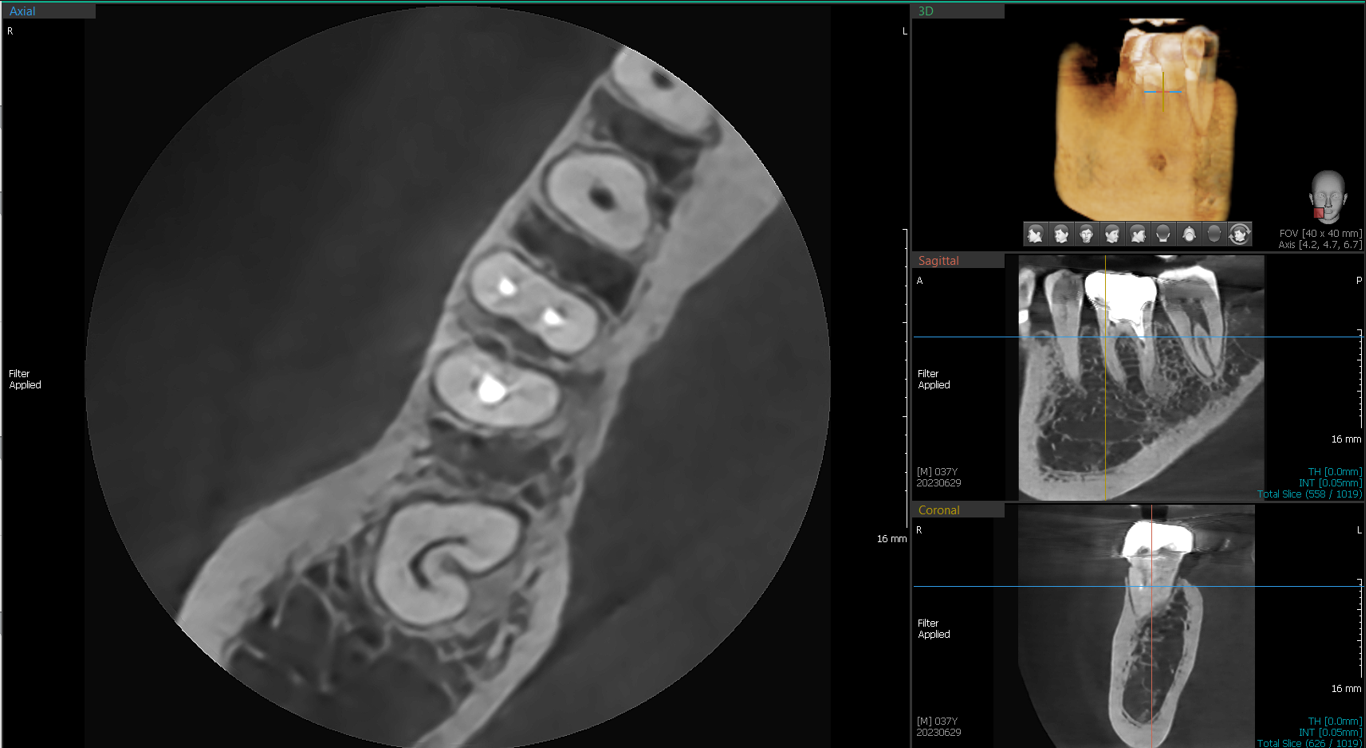

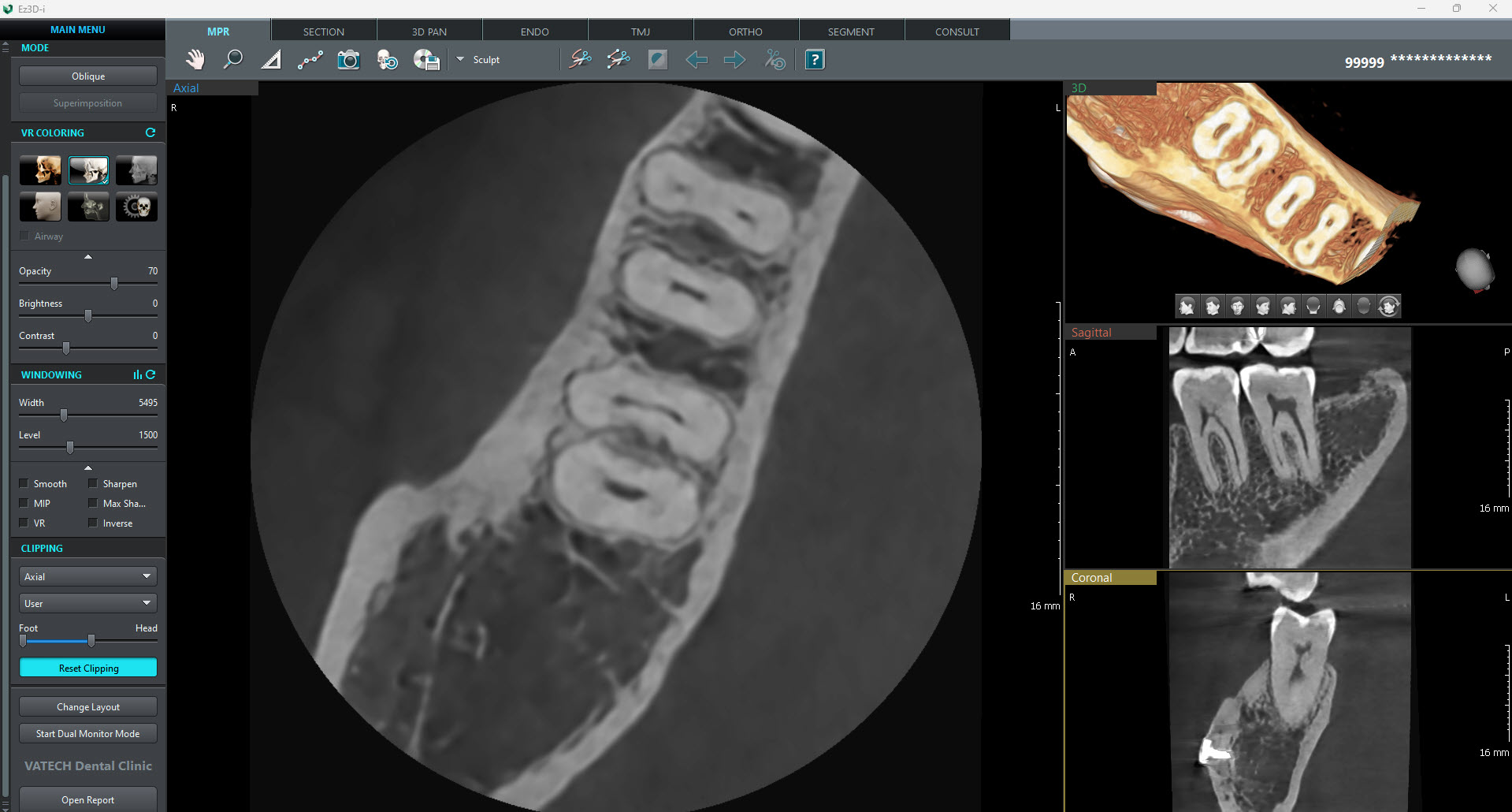

With its 4cm x 4cm volume mode and 50 micron voxel size, the Endo mode will optimize treatment of highly-focused regions of interest. It is ideal for endodontic use because the dentist is able to achieve an extraordinary image in a high-resolution voxel size.

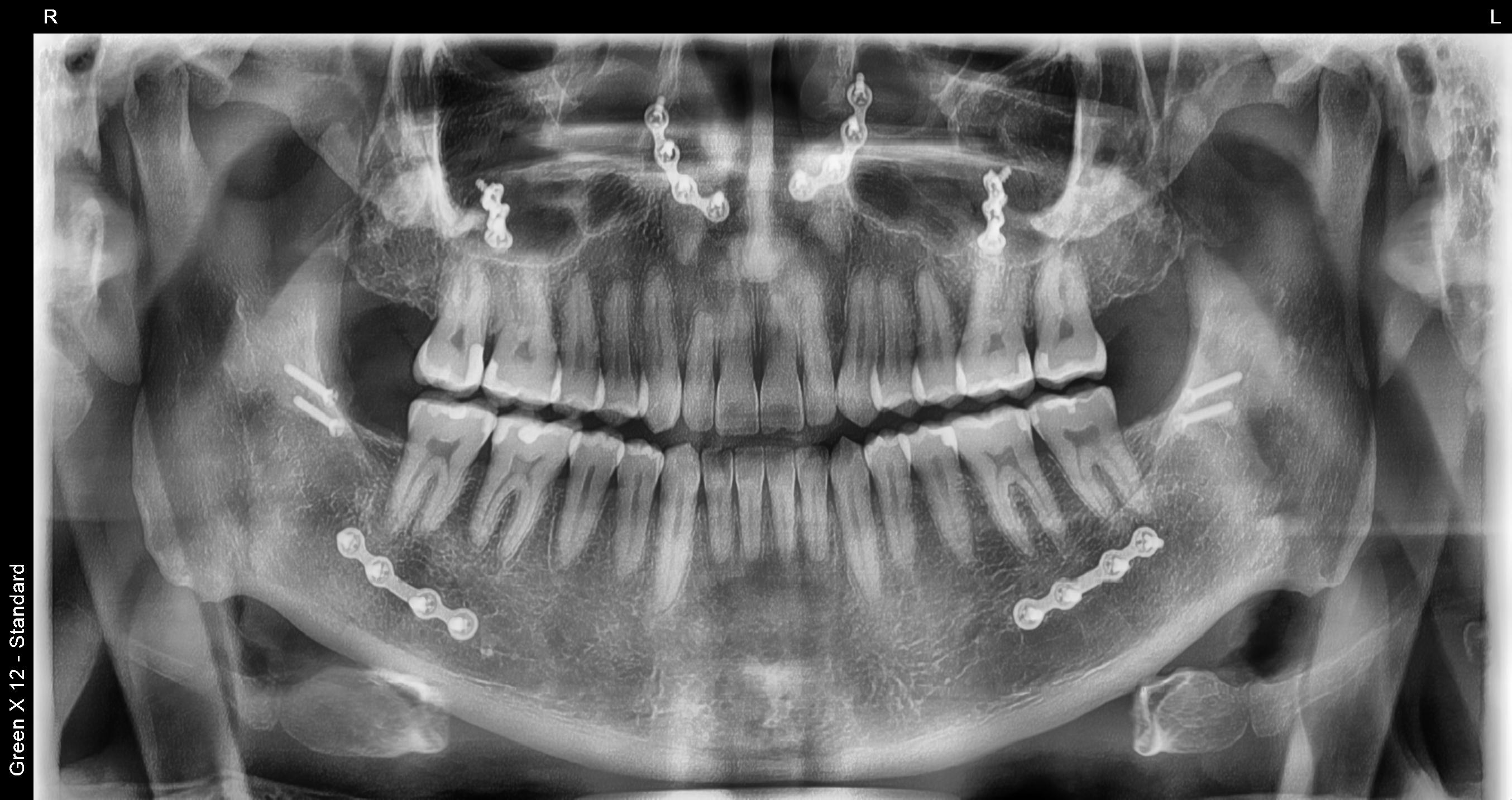

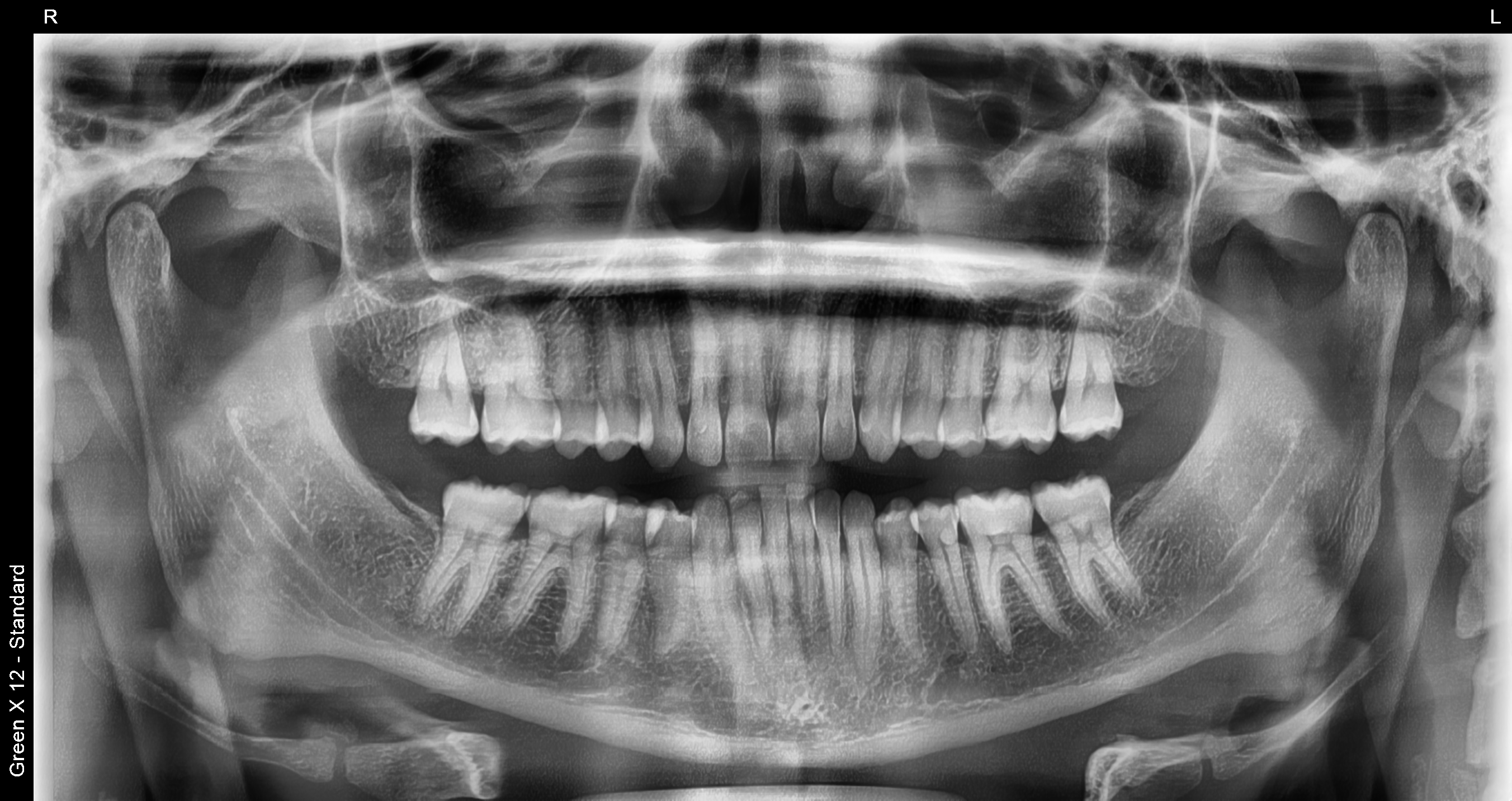

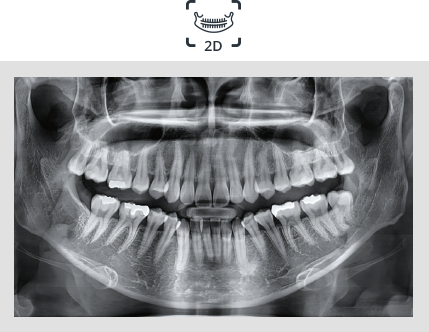

One scan with the Green X 12 gives you a CT and Auto Pano image.
This means that patients who require both images do not need to undergo two x-ray scans. Both images are displayed within the One Viewer feature.

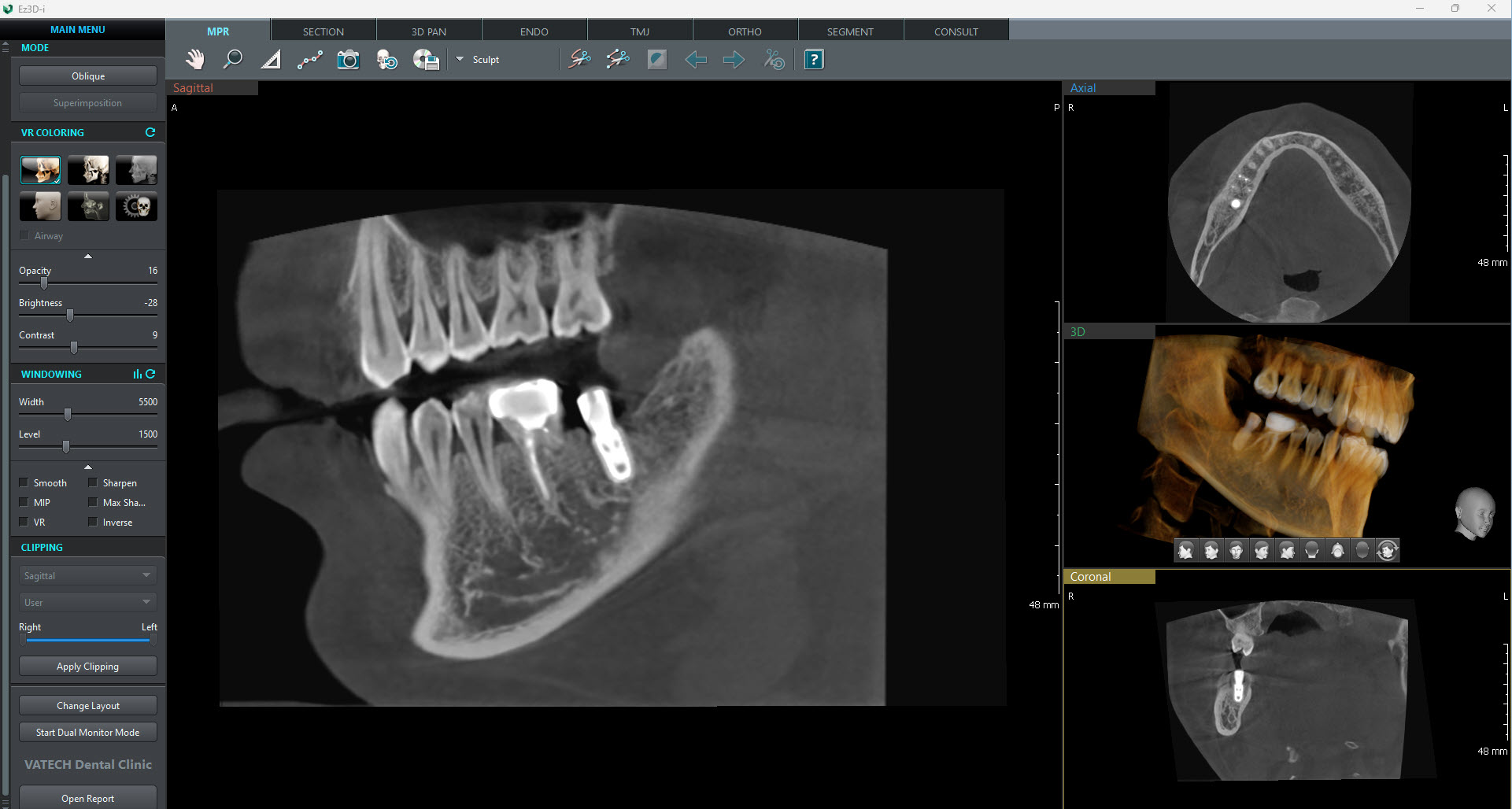

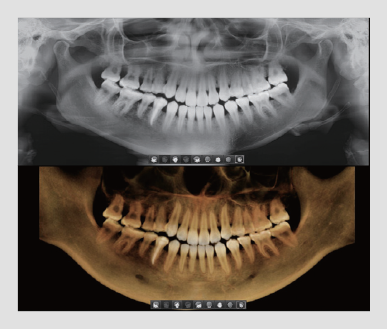

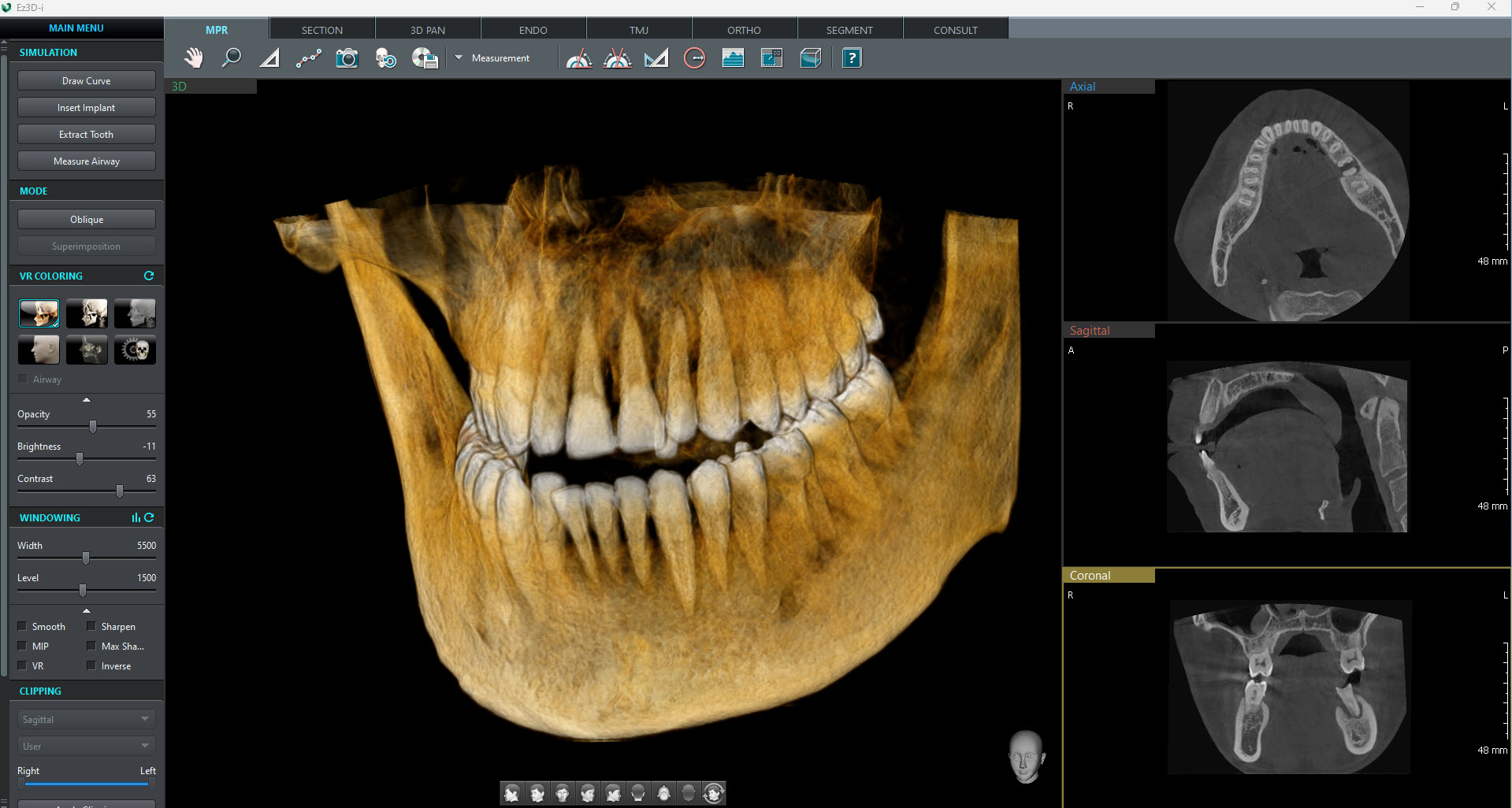

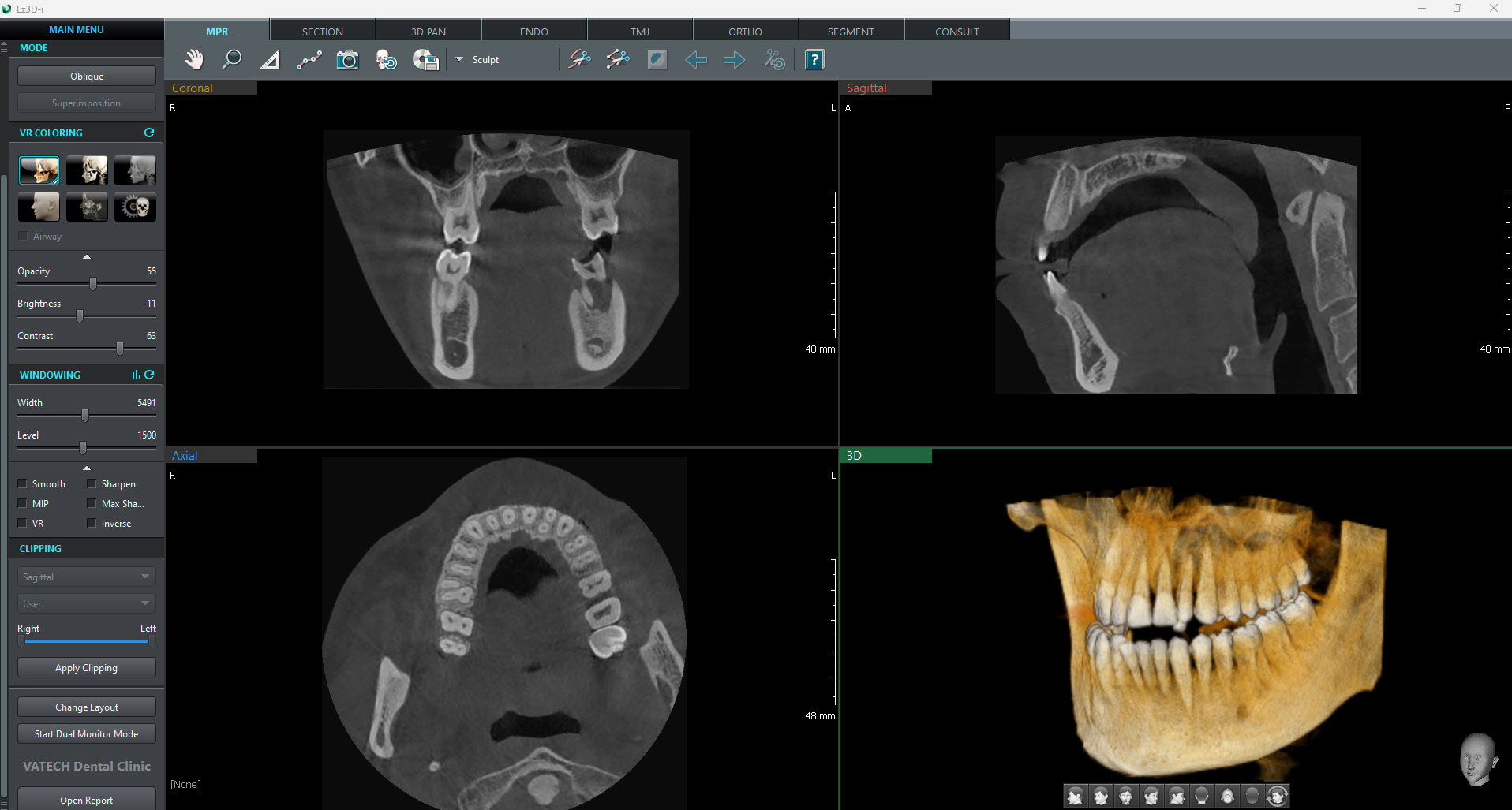

Viewing 2D and 3D images together provides many benefits. There is no need to utilize two different
software programs and the One Viewer feature presents a professional look for your patients.
This layout helps patients better understand the images, which will eventually result in increasing
acceptance rates.

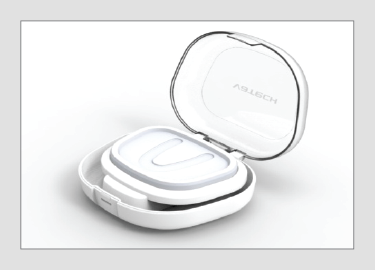

3D model scan enables users to store plasters as digital models.
Stable platform from partial model to full model scanning
| FUNCTION | FOCAL SPOT SIZE | CT FOV SIZE | VOXEL SIZE | SCAN TIME | GRAY SCALE | TUBE VOLTAGE / CURRENT | WEIGHT | DIMENSIONS |
|---|---|---|---|---|---|---|---|---|
| CT + Pano + Ceph + Model Scan | 0.5 mm (IEC 60336) | 4x4, 8x5, 8x8, 12x8.5 cm |
4x4 : 0.05 mm 8x5 / 8x8 : 0.12 mm / 0.2 mm 12x8.5 : 0.2 mm / 0.3 mm |
PANO 4.0 sec / 14.1 sec CEPH 1.9 sec / 4.9 sec CBCT 10.0 sec (8x5-8x8) / 15.5 sec (12x8.5) / 13.0 sec (4x4) |
14 Bit | 60 - 99 kVp / 4 - 16 mA |
Without CEPH unit 359.13 lbs - without Base / 480.38 lbs - with Base With CEPH unit 414.25 lbs - without Base / 535.50 lbs - with Base |
Without CEPH unit 42.716” (L) x 52.893” (W) x 91.157” (H) - without Base 42.716” (L) x 52.893” (W) x 92.338” (H) - with Base With CEPH unit 75.019” (L) x 54.129” (W) x 91.157” (H) - without Base 75.019” (L) x 54.129” (W) x 92.338” (H) - with Base |
* The specifications are subject to change without prior notice.
| With CEPH unit | Without CEPH unit | |
|---|---|---|
| TOP VIEW |
|
|
| FRONT VIEW |
|
|
* An additional 3 inches (76.2 mm) of space is required behind the unit for
wall mount bracket installation
(mandatory unless there is a base mount installation).
